continuous pyrolysis plant 80 tons PTD

Get Latest Price

Payment Type:

L/C,T/T

Incoterm:

FOB,CFR,CIF,DAF,DES,FAS,EXW

Min. Order:

1 Set/Sets

Transportation:

Ocean,Land

Port:

Contact Now

 Chat Now

Product Description

Product Attributes
Supply Ability & Additional Information
Packaging & Delivery

< >

Overview

Product Attributes

Model No.: FLT-C01

Brand: FLAT WORLD

Supply Ability & Additional Information

Packaging: nuded packing

Productivity: 10sets per month

Transportation: Ocean,Land

Place of Origin: China

Supply Ability: 10sets/month

Certificate: ISO9001/ISO14000/Ce

Port: Q

Payment Type: L/C,T/T

Incoterm: FOB,CFR,CIF,DAF,DES,FAS,EXW

Packaging & Delivery

Selling Units:: Set/Sets

Package Type:: nuded packing

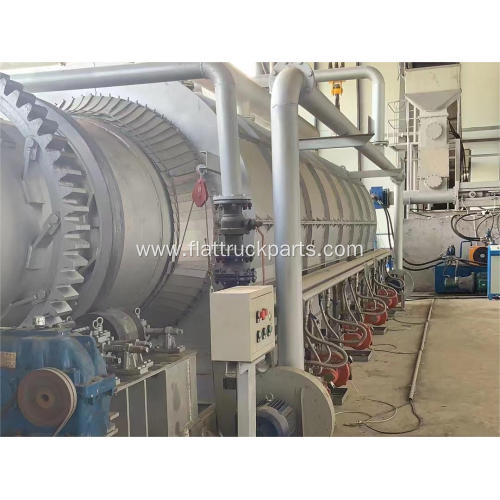

Picture Example:

Description :fully continuous waste Tyre Pyrolysis machine

Part No:FLT-C01

packing:nuded

payment :L/C,T/T

technical specification of FLAT-C01

Specification of FLAT-C01

Capacity:80TPD

Reactor size:3.3(DIA)m*8.8m*16mm

Reactor material:Q345R

heating :fuel/gas

Power:105KW

working type:continuous

Rotating：internal rotating

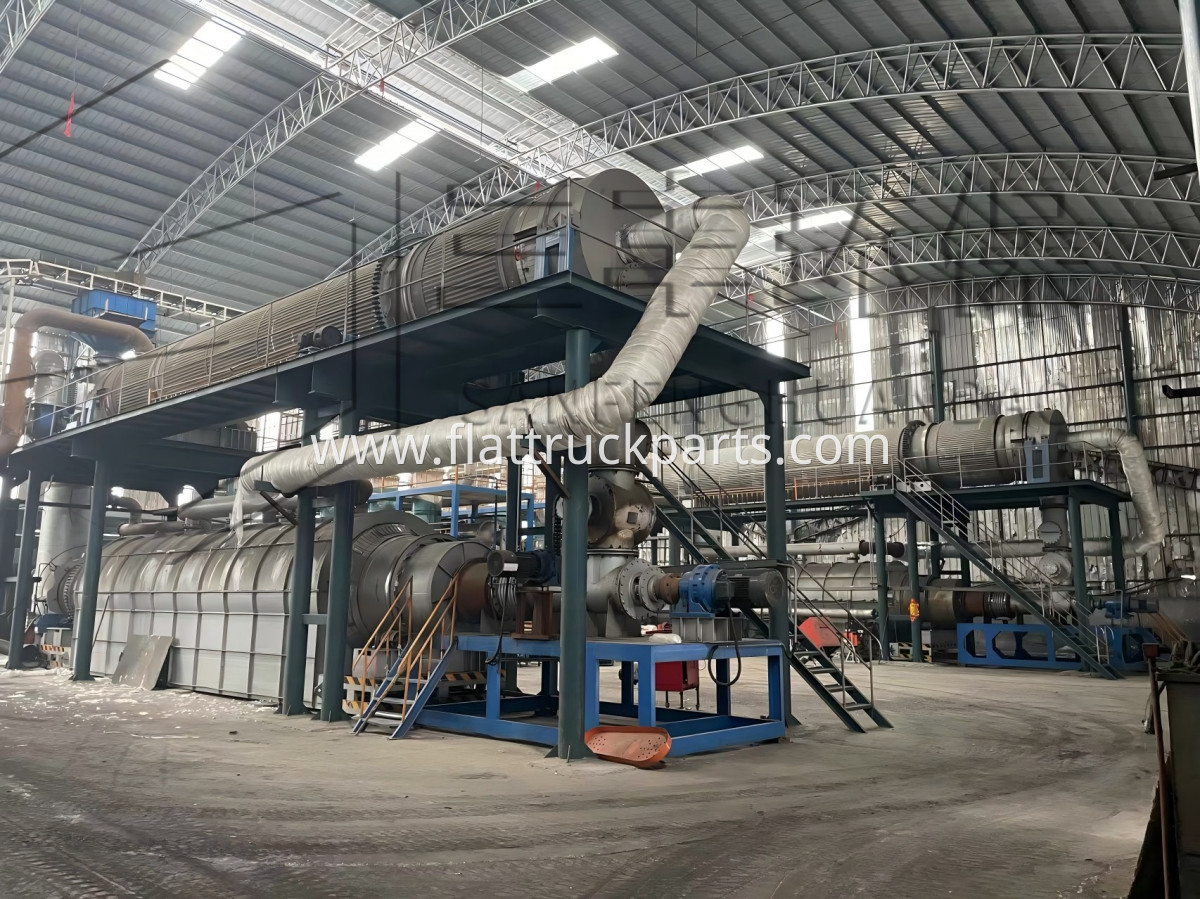

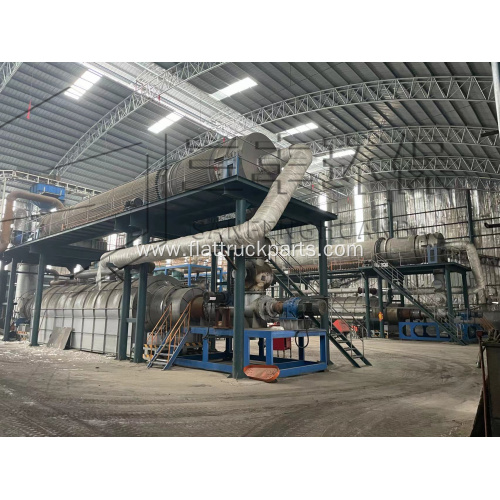

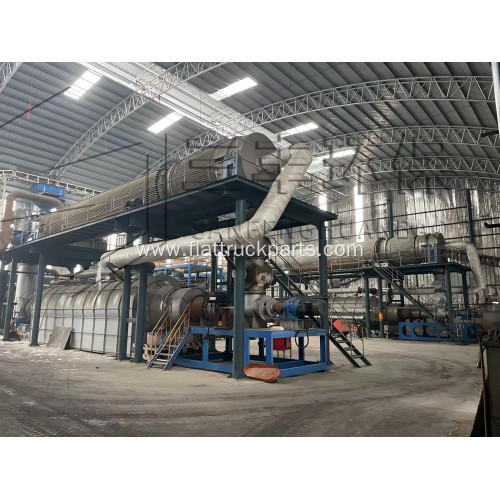

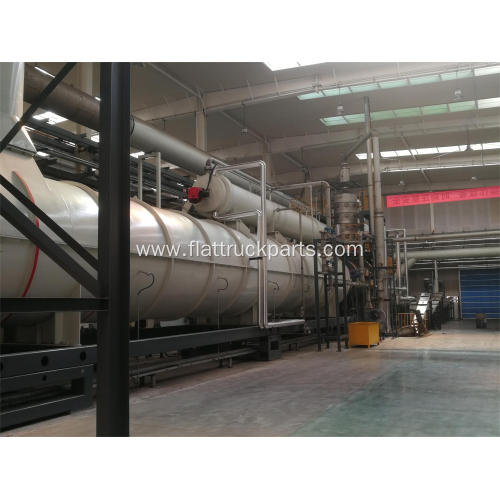

working process of fully continuous waste plastic Pyrolysis Plant

1. Pretreatment

Crush waste plastics into 2-3 cm pieces by plastic crushing system. If thematerial is wet, dry it first for saving processing time

2. Feeding

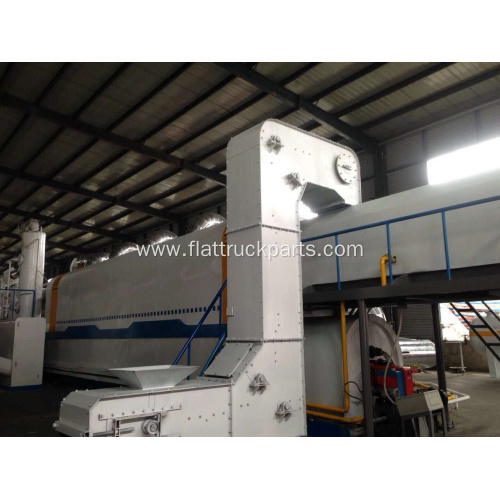

Feed the crushed waste material into pyrolysis reactor by the continuous feeding system automatically.

3. Pyrolysis

Heat pyrolysis reactor by heating fuel in heating furnace. At this point, the pyrolysis reactor will rotate evenly, so that the plastic uniformly heated. When the waste plastics reach a certain temperature, they will be pyrolysized into oil gas.

4. Condensing

The generted oil gas will flow into the cooling system, and be cooled into liquid oil then collected into oil tank.

5. Waste gas recovery and treatment

In the oil gas, there is some uncondensable gas which can be recycled to heat the reactor as fuel, saving energy and reduce fuel costs for customers. The exhaust gas produced by the combustion will be treated by tail gas cleaning and odor removal system and desulfurizetion & purification tower, so that the final emissions gas can meet the environmental protection standards and will not cause pollution to the environment.

6. Discharge

As oil gas is produced, carbon black is produced in the pyrolysis reactor. When the whole pyrolysis process is over, the carbon black can be discharged in one go through the continuous slagging system. And it can be cooled during the discharge process to a temperature at which can br directly packrf and collectrf, saving cooling time and increasing productivity.

Final products and their applications

1. Fuel oil

The main product produced by this fully continuous waste plastic pyrolysis plant is fuel oil which can be widely used for industrial and commercial purposes, such as power plant factory, glass factory, cement factory, ceramic factory, etc.

2. Carbon black

Carbon black can be reprocessed into high quality carbon by the carbon black grinding machine or briquetting for burning.

3. Uncondensable gas

In addition, we get about 10%uncondensable gas during pyrolysis process. The main component of this uncondensable gas are methane (CH4), and we cannot condense this gases. But we can use this gases to heat the pyrolysis reactor as fuel or collect them for other heating applications.

Shangqiu Flat World Machinery Co.Ltd specializing in making and distributing Waste Tyre And Plastic Pyrolysis Machine and recyling equipment like shredders,rocking sieve and other machines matched with the production line , which can turn the waste material like old tyres ,bottles,rubers and so on into useful tyre oil,carbon black,steel wire.we can supply batch /skid and continuous types of pyrolysis machine based on customers'requirement .

with professional sales and best after-sale service .we have esteablished business relationship with customers from many different countries .some of them have done business with my company for more than 10 years. we put our whole heart into quality controling .products sold from my copany will be granted one year qualtiy warranty ,any problem caused by quality within one year , customers can ask the payment returned back or choose to send a new replacement.
